1.0 electricity fee no wiring required work continuously for 3-7 rainy and cloudy days

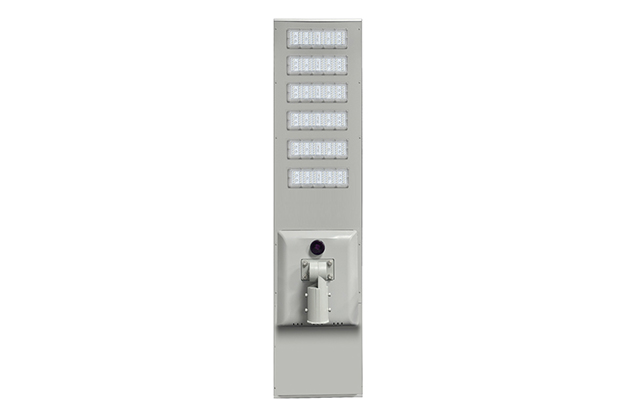

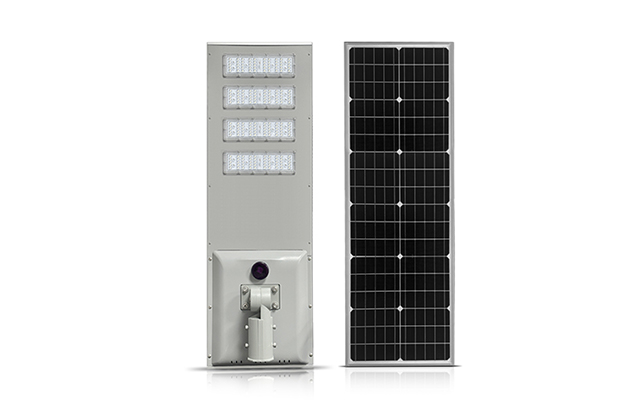

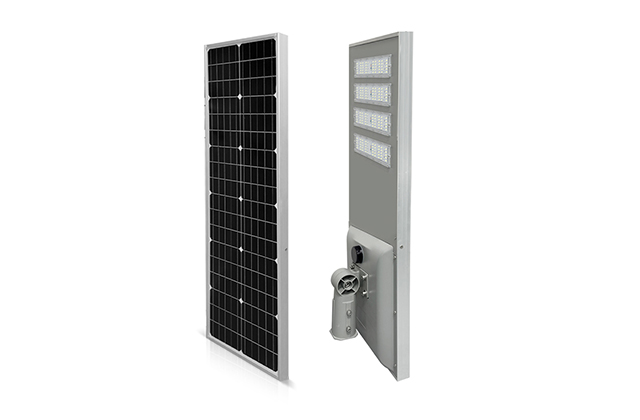

2.GH-LKG series is All in One solar lighting system designed for cost-effective lighting for small to medium spaces. Reliability and easy installation, All key components are integrated within the solar panel and light head.
3.The design of the detachable battery compartment reduces maintenance difficulty and cost, which is conducive to the sustainable use of the product.
4.It uses an intelligent MPPT controller to maximize solar power capture through a powerful and compact Lithium-Ion battery system, and a motion sensor to adjust light brightness and preserve battery power.
5.Removable battery compartment for easy battery relacement, reducing maintenance time and maintenance costs.
6.High brightness Lumileds SMD 3030 LED chips up to 200lm/w ,super brightness ,reduce light decay.

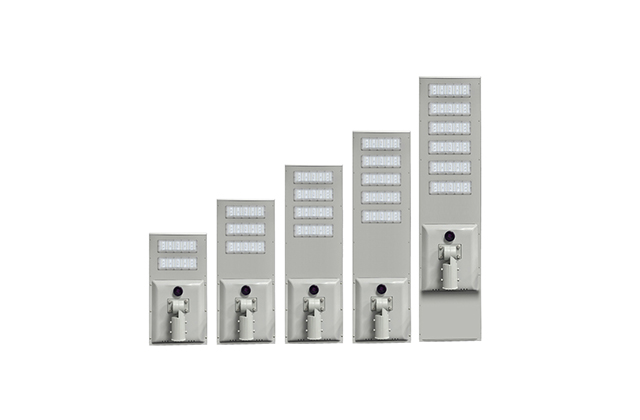

| Model number | LKG-20W | LKG-30W | LKG-40W | LKG-60W | LKG-80W |
| Single cystal solar panel | 18V/35W | 18V/50W | 18V/60W | 18V/80W | 18V/100W |
| Solar panel size | 630*334mm | 830*340mm | 988*340mm | 1310*340mm | 1650*340mm |
| Battery | Lithium ion 3.2v 36ah | Lithium ion 3.2v 76ah | Lithium ion 3.2v 100ah | Lithium ion 12.8v 37ah | Lithium ion 12.8v 45ah |
| LED | SMD 3030, 100PCS | SMD 3030, 150PCS | SMD 3030, 200PCS | SMD 3030, 250PCS | SMD 3030, 250PCS |
| Product size | 638*345*135mm | 838*345*135mm | 996*345*135mm | 1318*345*135mm | 1655*345*160mm |
| Light efficiency | 200LM/W | ||||
| Controller | MPPT、PWM Selectable | ||||
| Lighting mode | infrared sensing+segmented time control+intelligent control | ||||
| Recommended installation height | 4~5 meter | 5~6 meter | 6~8 meter | 8~10 meter | 10~12 meter |
